48v 10A battery charger for golf cart / electric bike / power wheelchair
Brief Description :
48v 10A battery charger is automatic smart charger for electric bike , electric golf cart , electric tools etc ev products .high efficiency and high saturation , Easy to use and convenience to take. Safety and multi protections .2 led indicatiors show charging or full charged status , After turning green , it will be maintained charging one or 2 hours ,then finished charging that will be good for prolonging your batteries' lives.
Feature :
1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~280 V 50 / 60 HZ
3. Max wattage : 600 W
4. Charge mode : 3 stage cc cv floating charging mode for lead acid battery charger , gel battery charger , agm battery charger , 2 stage cc cv for lithium ion / li ion battery charger, lifepo4 battery charger .
5. Charging : High saturation and efficiency
6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc
Advantage :
1. full automatic transition of cc cv and cut-off (cc cv 2 stage charger)
2. Precise limit of voltage& current, guarantee fully charged and avoid over charger
3. Protections : short circuit, over voltage, over-temperature, reverse polarity protections, Dc output isolated from AC input
4. High Efficient : > 85% PFC :0.96 Eco-friendly
5. Two led indicators LED1 Red ( power on ), LED 2 Red/Green ( charging/full )
6. Safety and high quality, Advantage high frequency switching mode power supply technology.
The 600W 48v 10A battery charger specification :
| Nominal Output Voltage | CV | CC | Transition / Cut-off Current | Net Weight | Size |
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid (A) | Li(A) | (kg) | (mm) |
| DL600W-12V | 14.7V | 16.8V | 14.6V | 25A | 5.0 | 1.25 | 2.5 | 210*120*70 |
| DL600W-24V | 29.4V | 29.4V | 29.2V | 18A | 3.6 | 0.9 |
| DL600W-36V | 44.1V | 42.0V | 43.8V | 12A | 2.4 | 0.6 |
| DL600W-48V | 58.8V | 54.6V | 58.4V | 10A | 2.0 | 0.5 |
| DL600W-60V | 73.5V | 67.2V | 73.0V | 8A | 1.6 | 0.4 |
| DL600W-72V | 88.2V | 84V | 87.6V | 6A | 1.2 | 0.3 |
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
Package & Delivery
1. Package : one piece one neutral box , 12 pcs/ carton, can be customized
2. Delivery : 5 to 7 working days , big order according to actual quantity
3. Delivery port : Guangzhou port
4. Payment term : T/T or Western Union
5. Delivery way : by sea / by air / by express or as your requirement
For more information about 48V 10A battery charger or other battery charger 12v 24v 36v 48v 60v 72v etc, welcome to contact us !
|
|

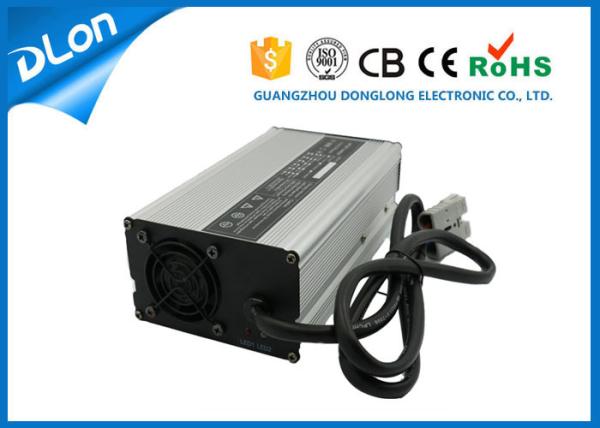

48v 10A battery charger for golf cart / electric bike / power wheelchair Images
|
