120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries

Name: 120w 24v electric bike charger 8s for lead acid lifepo4 liion batteries
Brand: DLON
Price: 15.0 USD

Buy cheap 120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries product

Brand Name : DLON

Model Number : DL120-24V

Certification : CE, RoHS

Place of Origin : Guangzhou China

MOQ : 50 pcs

Price : $15.0 ~ $20.00

Supply Ability : 10000 pcs per month

Packaging Details : box and carton, 12 pcs/ carton

Size : 135*90*50mm

Weight : 0.9 Kg

Input Voltage : 85VAC-250VAC

Max wattage : 120W

Ambient temperature : -20 °C to +50°C

Use : charging for lead acid battery

Protection : SCP,OVP,OCP,OTP

Application range : scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc

Warranty : 18 months

Contact Now

120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries

Brief description :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

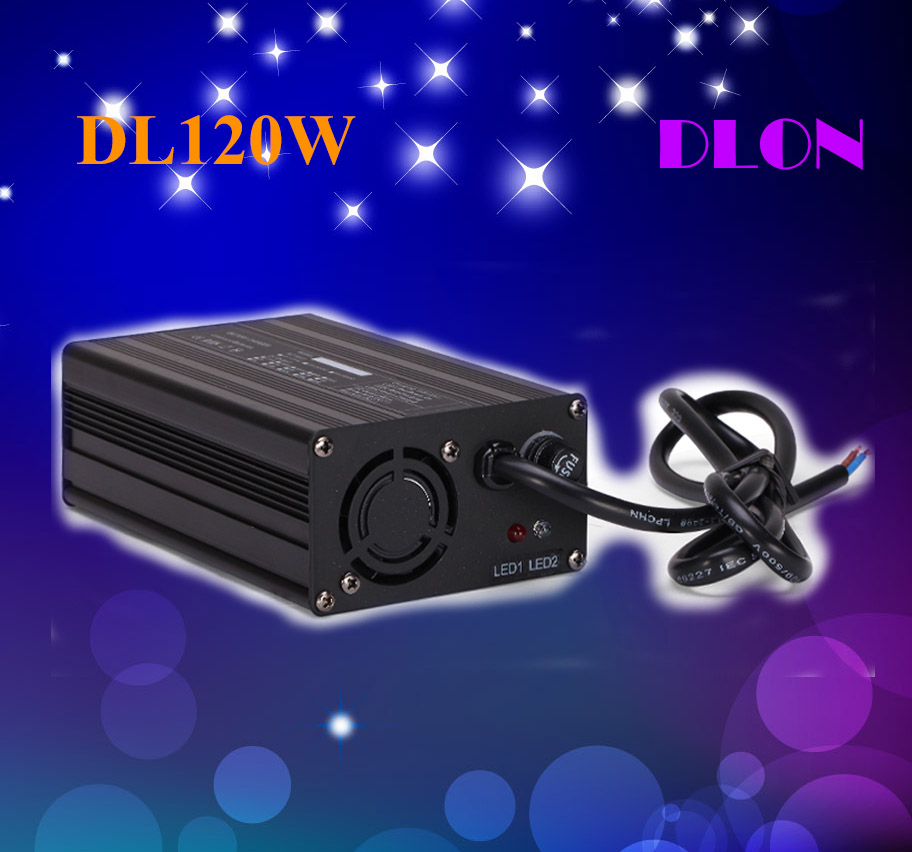

The pictures of 120w battery charger as follows :

120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries

The specification :

Nominal Output Voltage	CV			CC	Transition / Cut-off Current		Net Weight	Size
Nominal Output Voltage	Lead Acid	Li-MnO2	LiFePO4	A	Lead Acid (A)	Li(A)	(kg)	(mm)
DL120-12V	14.7V	16.8V	14.6V	6A	1.2	0.3	0.9	1359050
DL120-24V	29.4V	29.4V	29.2V	4A	0.8	0.2
DL120-36V	44.1V	42.0V	43.8V	3A	0.6	0.15
DL120-48V	58.8V	54.6V	58.4V	2A	0.4	0.1

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

120w 24v electric bike charger 8s for lead acid / lifepo4 / li-ion batteries
